Aerial Systems

4D Perception Inc. is the Official Distributor of Zhejiang Dianchen Aviation Technology Co., Ltd., who has successively developed the “SX” series of multi-rotor drones, the “SF” series of vertical take-off and landing fixed winged drones, and the world’s first Hybrid (Heavy Oil, Electric) Drone. The company’s key clients include: public security, fire departments, power companies, oil, border patrol, environmental conservation, surveying, mapping, transportation, urban management, etc.

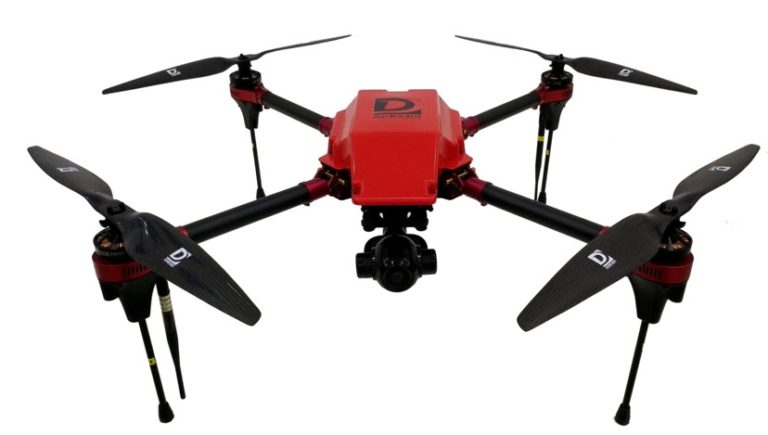

SX480

Function Feature:

  1. Foldable arm and leg, detachable rotor
  2. Packed in backpack, easy to carry
  3. High flexibility,    applicable to inspections, aerial photography, security and  other  operations
Main Parameter Parameter Number
Rotor Distance
830 mm
Weight
4500 g
Endurance
66 min (No Payload); 50 min (Payload 1000g)
Maximum Payload
3000 g
Maximum Telemetry Range
10 km
Maximum Video Range
10 km
Cruising Speed
36 km/h
Maximum Air Speed
72 km/h

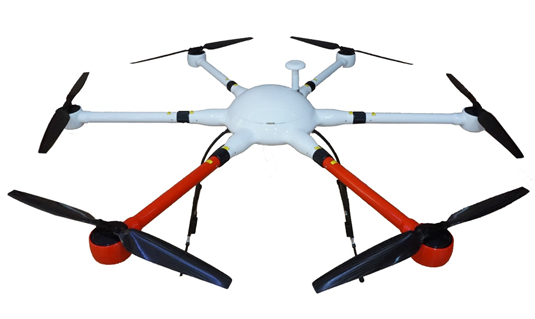

SX-6160

Function Feature:

  1. Integrated design, foldable arm and rotor
  2. Large battery capacity, high stability, large payload capacity, and multiple payloads can be mounted at the same time
  3. Sensor redundancy and high reliability
Main Parameter Parameter Number
Rotor Distance
1600 mm
Weight
11900 g
Endurance
71 min (No Payload); 32 min (Payload 5000g)
Maximum Payload
6000 g
Maximum Telemetry Range
10 km
Maximum Video Range
10 km
Cruising Speed
36 km/h
Maximum Air Speed
72 km/h

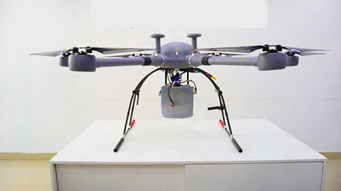

SX6160H - Hybrid (Heavy Oil and Electric)

Function Feature:

Existing drone oil-electric hybrid systems in the market use gasoline, which is unsafe. Gasoline is volatile, and the ignition point is low, which is flammable and explosive. Heavy oil is safer than gasoline, with high ignition point and less volatilization. The possibility of combustion explosion in daily transportation and storage is much lower than that of gasoline.

The first heavy oil hybrid power system of Dianchen weighs 6 kilograms and can provide up to 2.4KW of DC power. It can provide sufficient power for 20kg multi-rotor drones. It is equipped with the company’s SX6160 multi-rotor drone. The flight time is up to 6 hours. It is far more superior to lithium batteries in terms of cost of use, endurance, and adaptability.

  • Rotor Distance: 1600 mm
  • Weight (no payload): 16 kg
  • Fuel Capacity: 3 kg
  • Endurance: 360 min

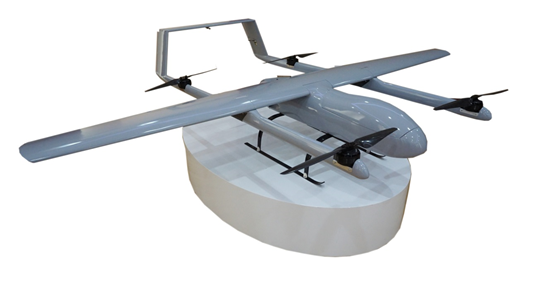

SF1680

Function Feature:

  1. The wings can be quickly disassembled and assembled for convenient transportation
  2. It only takes about 10 square meters  land to take off
  3. For long distance operation such as ocean survey, mapping and so on



Main Parameter Parameter Number
Rotor Distance
1680 mm
Weight
16000 g
Endurance
120 min (Lithium Battery); 300 min (Heavy Oil)
Maximum Payload
2000 g
Wingspan
2900 mm
Captain
2080 mm
Cruising Speed
80 km/h
Maximum Air Speed
150 km/h

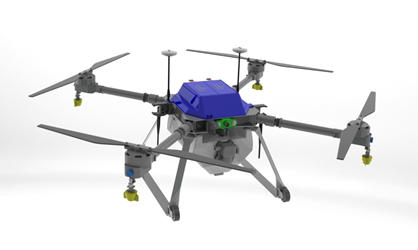

AX4120

Function Feature:

  1. Simple to handle and easy to carry
  2. Carbon fiber aluminum alloy material, high strength fuselage, structural optimization design
  3. Work efficient day and night with HD camera and high light

AX4120h

Function Feature:

  1. Flexible control and long endurance
  2. No need to carry batteries and ground charging equipment
  3. Achieve a single shoulder – to – shoulder operation
Main Parameter Parameter Number
Height
2-4m
Duration
Spray continuously for five cycles
Fuel Consumption
2.5 L/h
Max Take-off Weight
23 Kg
Water Capacity
10 L
Max Speed
10 m/s
Working Time
6-12 min/cycle

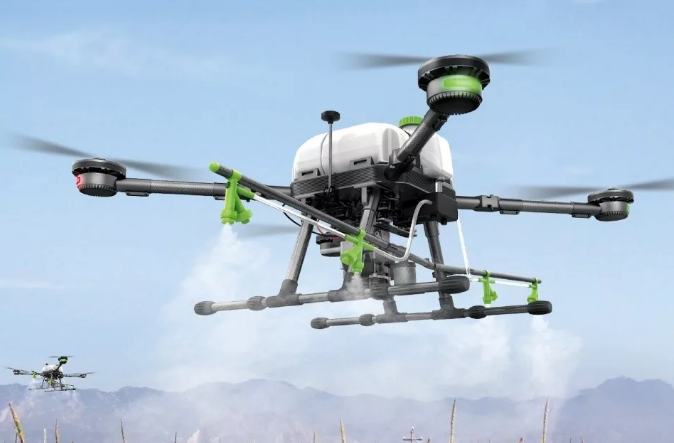

AX4150h

Function Feature:

  1. Super endurance, oil-electric hybrid system
  2. Convenient to transportation and easy to carry
  3. Professional anti-wind sprinkler to improve efficiency
  4. Support intelligent planning
  5. Has the ability of industrial waterproof, dust-proof and corrosion-proof
  6. Match other equipment according to different needs
Main Parameter Parameter Number
Duration
120 min
Fuel Consumption
2.5 L/h
Max Take-off Weight
35 Kg
Water Capacity
10 L
Max Speed
7 m/s
Working Time
30 min
Height
1-30 m
Max Spray Rate
0.397 L/min

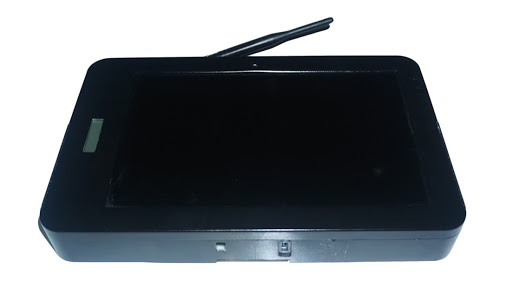

Flat Ground Station

Function Feature:

  1. Integrated map transmission, digital transmission, communication distance up to 12 km
  2. Powerful and convenient to carry
  3. Applicable to a variety of models
Main Parameter Parameter Number
Volume
350mm x 225mm x 58mm
Weight
2.4 Kg
Video Range
12 Km
Function
Display flight data, relay back to video, data download, route planning, instruction operation

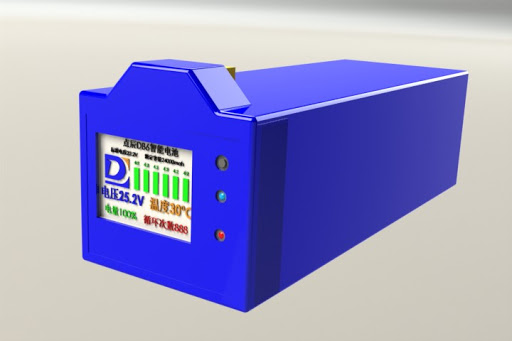

Intelligent Battery

Function Feature:

  1. Display real-time electricity, charge and discharge times, battery temperature and other information
  2. Integrated design, easy to carry, strong versatility
  3. Capacity and volume can be customized according to the mode
Main Parameter Parameter Number
Volume
200mm x 80mm x 70mm
Weight
2 Kg
Battery Capacity
18000 mah
Standard Voltage
22.2 v

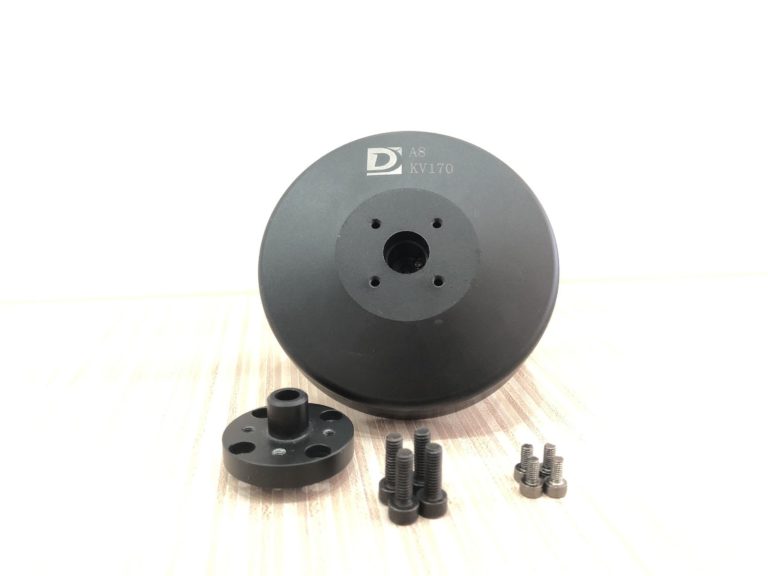

A8 Motor

Function Feature:

  1. Water-proof and dust-proof, imported bearing, 7075 aviation aluminum, CNC fine carving processing, high efficiency, high strength, long life.



Main Parameter Parameter Number
Weight
240 g
Stator Diameter
81 mm
Stator Thickness
8 mm
Rotor Diameter
87 mm
Motor Thickness
24 mm
Max Power
900 W
